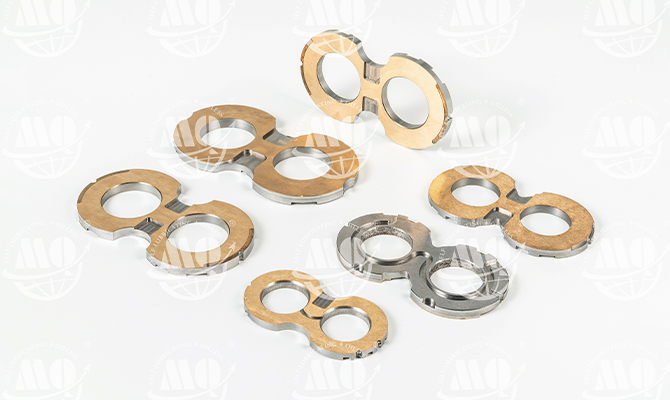

Bimetal Thrust Plate

Bimetal Thrust Plate

Bronze sintered alloy layer, with a thickness requirement of 0.2-1.0 mm; Steel base layer: made from high-quality rolled carbon steel or alloy steel plates as the substrate; Sintered bronze alloy forms a double-layer composite material, which endows the material with comprehensive mechanical properties and friction reduction and wear resistance. Widely used in high-pressure gear pumps and motors, etc. Customization is available according to customer drawings.

Bimetal Thrust Plate
High-quality carbon steel or alloy steel as
backing, then a sintered bronze alloy layer, with
the mechanical property, wear and
antifriction resistance and special loading

Application

Gear pumps and motors.
Can produced by the customer's design
Contact
  • Mechanical Property
    Code of Sintered Bronze Layer Code
    Shear Strength MPa
    Max. Speed V m/s
    Hardness HB
    CuPb10Sn10
    ≥150
    12
    60-90
    CuPb7Sn7Zn3
    ≥150
    10
    		 60-90
    CuSn6.5P
    ≥150
    10
    60-90
    Code of Backed Stee Code
    Tensile Strength MPa
    Hardness HB
    SAE1010
    ≥365
    		 90-130
    Q235B 370-500
    90-130
    Q345B 490-675 90-130

Jiashan Minqin Oilless Bearing Co., Ltd. a China Bimetal Thrust Plate Manufacturers, set up May.2007. As professional wholesale Bimetal Thrust Plate suppliers, Minqin has high-precision equipment, a high level of management team, and a high-quality workforce, and constantly improves the production process and refinement management platform, in strict accordance with the global quality certification system to do every detail for the industry to provide quality Bimetal Thrust Plate products.
